Step By Step Troubleshooting Azure Arc-enabled servers with agent connection issues #Windows #WindowsServer #WinServ #Azure #AzureArc #Cloud

Azure Arc-enabled servers enables you to manage your Windows and physical servers and hosted outside of Azure, on your corporate , or other cloud provider. This management experience is designed to be consistent with how you manage native Azure . When a hybrid machine is connected to Azure, it becomes a connected machine and is treated as a resource in Azure. Each connected machine has a Resource ID enabling the machine to be included in a resource group. Now you can benefit from standard Azure constructs, such as Azure Policy and applying tags.

When running Azure Arc for some time and suddenly the response stopped you need to dig a bit deeper into the how things are working instead of just kicking off an MSI and the issue is still not fixed.

This is all test So it may look different in your site.just to say so.

Here I have my two servers managed by Arc

Azure Arc-enabled server

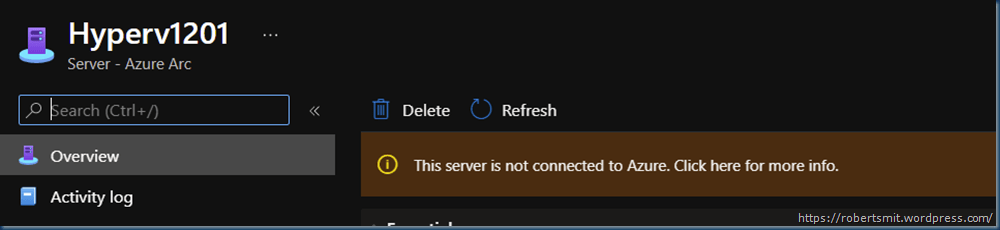

As you can see “Something went wrong while getting your resources. Please try again later.”

Azure Arc-enabled server

yes let me get more info about this as currently I know nothing about the error.


Azure Arc-enabled server

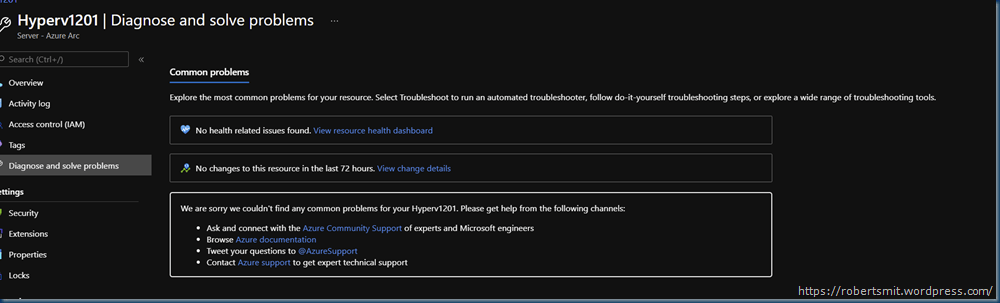

So It is all OK according to the Azure troubleshooter and still it doesn't work

Let me click around and see if there is and error ( I could see the local event log of the server but that's no fun Who uses this ? post some comments in the blog post) Eventlogs are extremely helpful on finding issues or hidden issue's Often people for get to look at his and see the problem right there. and yes it needs to be fixed also.


Will that be the issue ?  checking already running the latest version, so what is this error or did it go wrong when updating the agent, well I did skip patching for some time on these servers and upgraded these to 2022

Let me check the agent version,  well the latest version for now..


How is this Azure arc be configured anyway, there is no console other than in azure and an MSI with an agent,

let me check the configuration of this and see if I can find something there.

C:ProgramDataGuestConfig

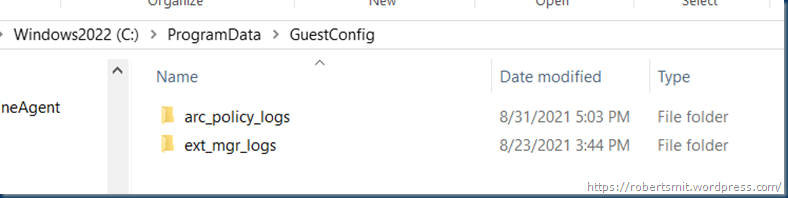

Perfect lots of log files and a config let me check this all


time=”2021-09-01T16:32:17+02:00″ level=error msg=”Could not acquire token from cert: FromAssertion(): http call(https://login.windows.net/-d391a79950b1/oauth2/v2.0/token)(POST) error: reply status code was 401:n{“error”:”invalid_client”,”error_description”:”AADSTS700027: Client assertion contains an invalid signature. [Reason – The key used is expired., Thumbprint of key used by client: ‘C2FA453DD43C16E584868C1C762DC91EBEC63232', Found key ‘Start=11/12/2019 15:45:00, End=02/10/2020 15:45:00', Please visit the Azure Portal, Graph Explorer or directly use MS Graph to see configured keys for app Id ‘a16df9d0-f012-45ae-8a92-1d0ad72e045e'. Review the documentation at https://docs.microsoft.com/en-us/graph/deployments to determine the corresponding service endpoint and https://docs.microsoft.com/en-us/graph/api/application-get?view=graph-rest-1.0&tabs=http to build a query request URL, such as ‘https://graph.microsoft.com/beta/applications/].rnTrace ID: 932-2ba8-4098-813e-05a2900rnCorrelation ID: 66a070fe-6ae4-4a25-ad3f-rnTimestamp: 2021-09-01 14:32:07Z”,”error_codes”:[700027],”timestamp”:”2021-09-01 14:32:07Z”,”trace_id”:”932e7194-2ba8-4098-813e-343df05a2900″,”correlation_id”:”-4a25-ad3f-160f98c9fd9e”,”error_uri”:”https://login.windows.net/error?code=700027“}”

Seeing the Config and also see the issue here — Client assertion contains an invalid signature. [Reason – The key used is expired–

As I did not update the agent the got expired make sense.

But the device has already the new agent So reconnect ? but how ?

Looking at the Config I see all the details how the agent is been registered and the resource group etc

C:ProgramDataAzureConnectedMachineAgentConfig

agentconfig.json

{“subscriptionId”:”f34″,”resourceGroup”:”AzureBackupRG_westeurope_1″,”resourceName”:”Hyperv1201″,”tenantId”:”0b1″,”location”:”westus2″,”vmId”:”9659193c-f4d8-4a77-b8f9baad507ce9a9″,”certificateThumbprint”:”c2fa453dd43c16e584868c1c762dc91ebec63232″,”clientId”:”0-f012-45ae-8a92-1045e”}

Let me open powershell and maybe I got more details. and reactivate the Agent

With the azcmagent command you can get more details.


let me get all the logs

azcmagent logs


now we have all the logs in a zip file this could be handy for a next time.

Azure Arc-enabled server

As I reconfigure the agent with the following command

& “$env:ProgramFilesAzureConnectedMachineAgentazcmagent.exe” connect –resource-group “AzureBackupRG_westeurope_1” –tenant-id “your tenant id” –location “westus2” –subscription-id “errryh934” –verbose

With the reconnect we need to log in again and all goes well


But in the logging there is suddenly another error


When looking here I see there is an Azure Policy that demands a TAG and this is currently not available on the resource group So I Can't onboard my Azure Arc server.

Thought this was about an Agent that has an expired .

Azure Arc-enabled server

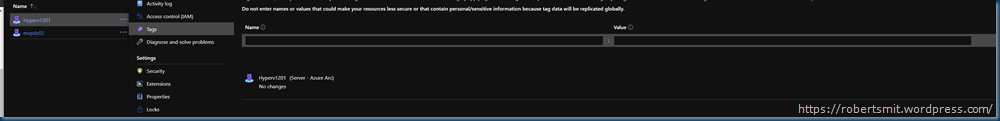

Seems there is a Azure policy that is blocking as the hyperv1201 has no tags set the mvpdc02 has only a tag set.




After a quick change I rerun the command line and it worked perfectly and it showed up in the console again.

& “$env:ProgramFilesAzureConnectedMachineAgentazcmagent.exe” connect –resource-group “MVPRSG-Azure-Arc” –tenant-id “3078684f-d143-440a-ae40-d391a79950b1” –location “West US 2” –subscription-id “df1e2f32-7adf-48f6-b969-f02376152934” –verbose

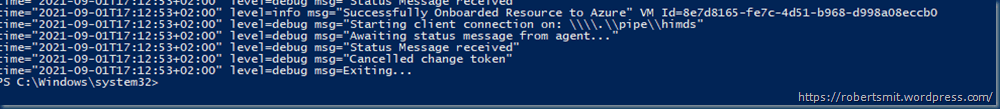

Starting client connection on: \.pipehimds”
time=”2021-09-01T17:12:53+02:00″ level=debug msg=”Awaiting status message from agent…”
time=”2021-09-01T17:12:53+02:00″ level=debug msg=”Status Message received”


As I have a second machine with the same issue I removed the machine directly in the arc portal and rerun the registration as the agent was also already installed. (this would be the quick fix for this)

Azure Arc-enabled server

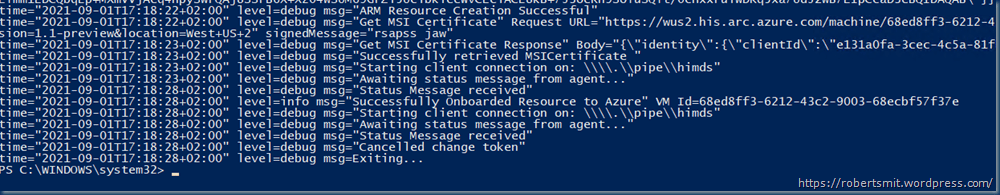

Perfect reconnecting and waiting for the Agent.

Azure Arc-enabled server

Now I can look at the Azure Arc Insights again.
