Step by Step Create a User P2S VPN using Azure Secured Virtual Hub and Azure Active Directory #SDWAN #Azure #Secure

There are multiple ways on use a VPN and connect and use this. In this blog I use an Azure Virtual WAN Hub with associated security and routing policies configured by Azure Firewall Manager.

When connecting to your Virtual Hub over the IKEv2 protocol, you can use certificate-based or RADIUS . However, when you use the OpenVPN protocol, you can also use Azure Active Directory .

I will use the open VPN with Azure Active Directory authentication. Remember this is only supported on Windows 10 as you will need the Azure VPN client from the microsoft store.

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

For giving the vpn application the proper permissions, you need to register the application to your Azure AD first.

below is the default URL that can be used to trigger the registration, use the proper rights to create an enterprise App in you Azure AD

https://login.microsoftonline.com/common/oauth2/authorize?client_id=41b23e61-6c1e-4545-b367-cd054e0ed4b4&response_type=code&redirect_uri=https://portal.azure.com&nonce=1234&prompt=admin_consent

Sign in with the proper credentials


Using the wrong account will end up in

AADSTS50020: User account  from identity provider ‘live.com' does not exist in tenant ‘Microsoft' and cannot access the application ‘4b4′(Azure VPN) in that tenant. The account needs to be added as an external user in the tenant first. Sign out and sign in again with a different Azure Active Directory user account.

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

When Accepted the you will be redirected to the Azure portal.


In the Azure portal you can go to the Azure active directory and

Enterprise applications | All applications  and search for Azure VPN

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

Now that the basics are in place, we can configure our Site to Site VPN profile the following information is needed.

Go to your Virtual Wan and select the user VPN configuration

imageimagehttps://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

Create User VPN ##### I noticed during the writing of this blog post the screens may differ as the portal changed the layout#######

  • Configuration name – Enter the name you want to call your User VPN Configuration.
  • Tunnel type – Select OpenVPN.
  • Authentication method – Select Azure Active Directory.
  • Audience – Type in the Application ID of the Azure VPN Enterprise Application registered in your Azure AD tenant.
  • Issuerhttps://sts.windows.net/tenantID/
  • AAD Tenanthttps://login.microsoftonline.com/TenantID

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

Select open VPN



Set the switch to yes and new fields will open.

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

#the number is your tenant ID


Now that the VPN user profile is created we can configure the HUB


Now that the user vpn profile is created we can create the P2S VPN.  Select your hub

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

Select the user VPN point to site VPN  select create


Creating a VPN gateway you need to select the just created User profile.

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

Select a proper IP subnet and if needed a DNS server for the workload into that network

Updating a hub can take 30 minutes or more.


Download User VPN profile as we need this on the Windows 10 client later.

Use the VPN profile to configure your clients.

  1. On the page for your Virtual WAN, click User VPN configurations.
  2. At the top of the page, click Download user VPN config.
  3. Once the file has finished creating, you can click the link to download it.
  4. Use the profile file to configure the VPN clients.


To download the Azure VPN client on your windows 10 test device.

Use this link to download the Azure VPN Client.

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011image

Open the VPN Client you can add a new VPN or import a Connection

image https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

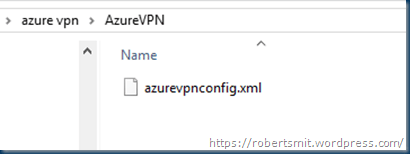

For Importing the Connection we need the just downloaded zip file and extract this in the AzureVPN folder there is a XML that holds the vpn configuration.


image https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

If any thing goes wron with the import it is 99% your pbk file,


go to the following folder and delete the files – this will probably also remove your other vpn connections it you had any.

%userprofile%AppDataRoamingMicrosoftNetworkConnectionsPbkrasphone.pbk

C:UsersadminAppDataLocalPackagesMicrosoft.AzureVpn_8wekyb3d8bbweLocalState


Now that the Import worked and you are ready to connect to the VPN in Azure.


  Use your Azure AD credentials or your FIDO2 key



  Now we are fully connected to the Secure Virtual WAN in Azure

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

It can take some time to see your connection in the portal


Showing the above it all is easy to setup this but I already see the questions yes but I need to do this on 5000 Windows 10 devices.

Microsoft Endpoint Management is your best friend.

Deploy VPN with Microsoft Endpoint Management

We create a Custom Template and do not select the VPN option as this is not for uploading the XML



In our Custom settings we add the Following settings

  • Name: Enter a name for the configuration.
  • Description: Optional description.
  • OMA-URI: ./User/Vendor/MSFT/VPNv2/demo01_hub-weu/azurevpnconfig.xml (this information can be found in the azurevpnconfig.xml file in the tag Name).
  • Data type: String (XML file).

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011

Now that this is done we can create some assign ments and test this on the pilot group


As you can see there are a few steps involved and are linked together

https://docs.microsoft.com/en-us/learn/modules/introduction-azure-virtual-wan/?WT.mc_id=AZ-MVP-4025011
